Gas-chlorine dosers
Сhlorine Batchers
The chlorine dosing system "Agate" MM 1.00.00.000 ТУ is intended for dosing gaseous chlorine during chlorination of drinking water, manufacturing water and sewage.
The system can be used in the technologies demanding the use of chloric solutions. Type of climatic modification УХЛ4 in accordance with GOST 15150-69.
| 1. Long-term operating mode. | |
| 2. Vacuum principle of work. | |
| 3. Chlorine pressure: - Maximum along the whole delivery pipe up to the drive unit, Мpa; (kgs / cm2); - Working (after the drive unit), Мpа (kgs/cm) . |
no mare than 1,6; no more from 0 up to 0,1 (from 0 up to 1,0). |
| 4. Decrease, regulation and maintenance of desired pressure by the drive unit. | |
| 5. Productivity on chlorine, m3 / h (kg / h): | а) from 0,07 (0,2) up to 1,38 (4); б) from 0,21 (0,6) up to 4,14 (12). |
| 6. Pressure in water-main up to the ejector, Мpа (kgs / cm ²): | from 0,4 up to 0,6 (from 4 up to 6). |
| 7. Pressure in water-main after the ejector, Мpа (kgs / m ²): | from 0,01 up to 0,1 (from 0,1 up to 1). |
| 8. Supply rate of chlorine is regulated with faucet according to rotameter. | |
| 9. Overall dimensions, without ejector, mm: | no more than 280 х 340 х 150. |
| 10. Overall dimensions, of the ejector, mm: | no more than 260 х 100 х 80. |
Operation manual [Формат pdf, 639 Кбайт]
.jpg) |
.jpg) |
.jpg) |

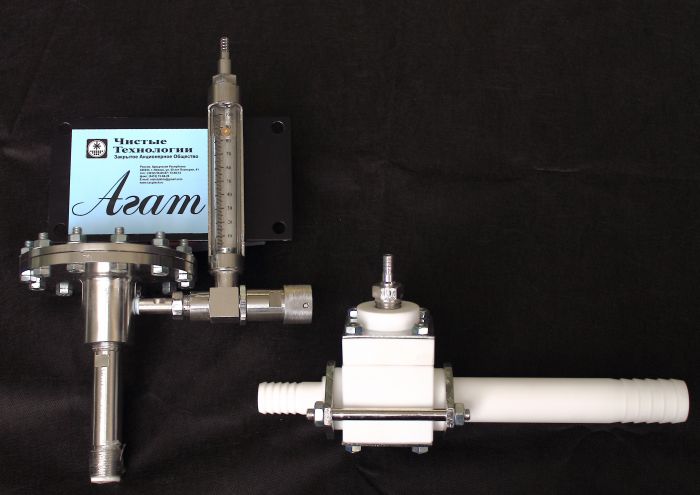

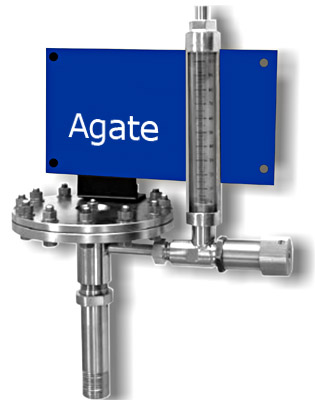

| Chlorinator on a consumption of gaseous chlorine to 4 kg/h | Chlorinator on a consumption of gaseous chlorine to 12 kg/h | Chlorinator on a consumption of gaseous chlorine to 40 kg/h |
.jpg) |
.jpg) |
.jpg) |
| The ejector on a consumption of gaseous chlorine to 4 kg/h | The ejector on a consumption of gaseous chlorine to 12 kg/h | The ejector on a consumption of gaseous chlorine to 40 kg/h |
